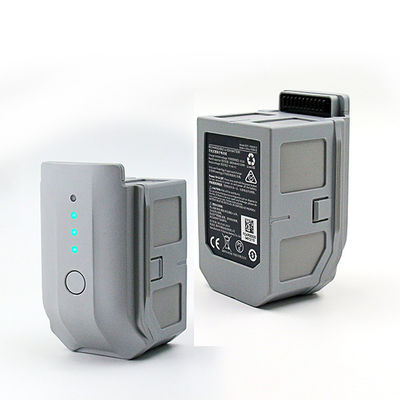

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh

hobbyist battery pack

,

drone battery lithium ion 860mAh

,

lipo drone battery 1100mAh

Chat Now
Service Hotline:
0752-2322511
High Rate Discharge Li-Po Battery

Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect

Industry-leading high temperature & high power discharging capability
Outstanding gravimetric Energy density: max 280Wh/kg
Low IR, low temperature rising, low self-discharging
Longer cycle life:1C ≥1000 cycles , 100% DOD
Good consistency, stable performance
LCO(4.2V/4.35V/4.4V/4.45V),LFP and NCM ,Flexible customized solution
Product Details
Place of Origin:
China
Brand Name:
FULLYMAX
User-defined Attribute
High Light:

hobbyist battery pack

,

drone battery lithium ion 860mAh

,

lipo drone battery 1100mAh

Standard Feature:

  • Max 5C Fast charge

  • High energy density,max 280Wh/kg

  • SMBus communication supported

  • Advanced battery management systems and excelent battery cell performance for normal outdoor operation at both low and high temperature

  • Smart, easy and safe for use

  • Professional and experienced technical team for independent R&D, flexible and reliable technical service customization.



Partial Product Models​:

Battery pack Max cont. discharge Weight Application
860mAh 3.85V 1cell 25C 25g  Outdoor selfie
1100mAh 3.8V 1cell 15C 28g  Programmable EDU
1200mAh 3.8V 1cell 15C 50g  Programmable EDU
1200mAh 7.4V 2cell 25C 74g Programmable EDU
1600mAh 11.4V 3cell 10C 95.4g Drone Light Show
3850mAh 11.55V 3cell 8C 250g aerial photography
3800mAh 11.4V 3cell 8C 232g

 aerial photography

Application​​:

Quadcopter in fields of outdoor selfie,programmable EDU,light show,aerial photography,etc.









Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 0      Packaging & Shipping

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 1

Regular Safety Packing Or As Customer's Requirements.

Shipping By Sea, Air Or UPS, DHL, FedEx Express.



PAYMENT TERMS

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 2



EXPRESS OPTIONS

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 3











Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 0    Manufacturing Capability

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 1

Capacity&Leadtime





● Stacking/per day:50Kpcs



● Winding/per day:5,00Kpcs



● Regular Model:≤8 weeks



● Customized:16-18 weeks(The first order, if nonew facility added )



Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 6 Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 7



The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers.







Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 0     Quality Management Syste

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 1

Management Improvement according to international standards



Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 10 Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 11
  • Quality management systems Requirements for Aviation
  • ISO9001 Quality Management System
  • ISO14001 Environmental Management System
  • Hazardous Substance Process Management System
  • Occupational Health And Safety Management System



Safety and environmental Certificates

capability&service

  • Simulation tests of safety certificates proceeded
  • Service of certificates application for customers

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 12



Performance Test Capability



  • Electric Performance Test
  • Safety Performance Test
  • Mechanical Performance Test
  • Environmental Performance Test
  • Storing Performance Test







Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 0     FAQ

Lipo Private Hobbyist UAV Drone Battery Power Bank Lithium Ion 860mAh 1100mAh 3800mAh 1

Q1.What should be known about assembling battery packs?

1. Shocks, high temperature or contacts of sharp-edge components should not be allowed in battery pack assembling process.
2. Soldering directly to polymer tabs is not recommended. When you solder directly to the polymer tabs, it is necessary to ensure not to apply too high welding temperature and too long welding time, to guarantee that the temperature transmited to the cells is lower than 80℃. Temperature above 80℃ may cause damage to the polymer cells and degrade their performances.
3. In case that the battery packs are fixed by ultrasonic welding, it is necessary to ensure not to apply too much ultrasonic welding power to thepolymer cell and electronic circuits such as PCM. Otherwise, itmay cause serious damage to the cells and electronic circuit.


Q2. What are the diferences betwee high C-rate and low C-rate lithium?

polymer (Li-Po) batteries.
In general, the diferences lie in the materials made of the positive & negative terminals, the area density design, the electrolyte ingredient, the septum data and the density of inside pieces.





Q3. How is a Li-Po battery made?

When a Li-Po battery is made, five main aspects should be considered carefully:

(1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks;

(2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed;

(3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection;

(4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.





Q4. How to Charge li-Po battery?

1. Charging Current: Charging current should be less than the maximum charging current listed in specifications. Charging with higher current than recommended may cause serious damage to cell performance and safety features,leading to heat generation or leakage.

2. Charging Voltage: Charging should be performed at a voltage less thanthat listed in specifications (4.20V/cell). Charging at above 4.25V-the absolute maximum voltage, must be strictly prohibited.The chargers used should have this voltage limitation function. Charging with higher voltage than specified is very dangerous, which may cause serious damage to the cell performance and safety features, leading
to heat generation or leakage.

3. Charging Temperature: The cells should be charged within a range of temperatures listed in the specifications. Always let the batteries cool down to ambient temperature before charging.

4. Prohibition of Reverse Charging: Do not reverse the positive(+) and negative(-) terminals. Otherwise, the batery pack wil be reverse-charged and abnormal chemical reactions may ocur. Ecesively high current may flow during recharging, possibly leading to damage, overheating, smoke emission, bursting and/or ignition.
5. Use specific Li-Po charger only. DO NOT use a Ni-MH or Ni-Cd charger. It is your responsibility solely to ensure that the charger you purchased works properly.
6. Never charge batteries unattended. Always monitor charging process to assure batteries are being charged properly. Always charge the batteries in an isolated and safe area away from any flammable or/and combustible materials.





Q5. Why do we need formation process?

Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.





Q6. Why do Li-Po batteries bloat/swell?
The Li-Po batteries may bloat or swell due to the following reason:
1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling.
2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling.
3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling.
4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling.

Q7.What discharging conditions do you recommend?


1. We Recommended a cut-off voltage as 3.0 V for standard series batteries.
2. The dischargerate should not exceed the maximum continuous discharge rate listed in the specifications.
3. The discharge temperature range should be -20℃ to +60 ℃. For maximum performance of our high-power series batteries, discharge temperature between 20℃ and 40℃ isrecommended.
