Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect
|

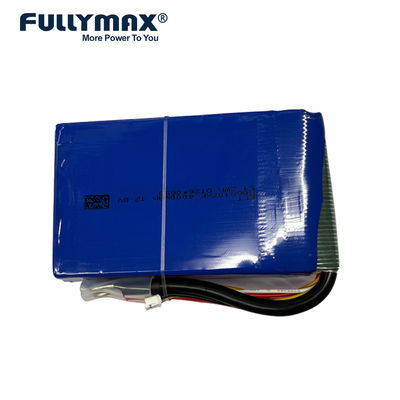

FULLYMAX 4FBC-8544141TF 3500mAh 12.8V 70C 350A fast charge long cycle life lipo jump start battery pack
Fullymax's low-temperature LiFePO4 battery takes new technology with excellent low-temperature performance at -20℃.
Such batteries which support large rate discharge at - 20 ° C~- 30 ° C are widely used in military equipment, aerospace industry, deep diving equipment, polar region scientific investigation, medical electronics, and other low temperature application fields. |
Related Feature
For other configurations (without discharge plug) with same cell model, please refer below table.
| Model No. | Capacity | Voltage | C-Rate | Burst C-rate | Dimensions | Weight | Application |
| 4FBC-9584165HF | 10000mAh | 12.8V | 40C | 1000A | 40x88.5x185mm | 1080g | Start-Stop & Jump starter |
| 4FBC-9087125HF | 8000mAh | 12.8V | 40C | 480A | 40x88.5x136mm | 890g | |
| 4FBC-1084165PF | 7500mAh | 12.8V | 40C | 750A | 31.5x88.5x185mm | 890g | |
| 4FBC-10557130HF | 6100mAh | 12.8V | 40C | 366A | 45x58.5x141mm | 685g | |
| 4FBC-9570112HF | 6000mAh | 12.8V | 40C | 600A | 40.5x71x126mm | 650g | |
| 4FBC-9768107XF | 5000mAh | 12.8V | 45C | 500A | 40x70x120mm | 600g | |
| 4FBC-7470125PF | 5000mAh | 12.8V | 40C | 500A | 32x71.5x140mm | 580g | |
| 4FBC-6075130HF | 4500mAh | 12.8V | 40C | 450A | 26.8x77x143mm | 540g | |
| 4FBC-6070140HF | 4200mAh | 12.8V | 40C | 420A | 26x72.5x152mm | 485g | |
| 4FBC-9452106HF | 4000mAh | 12.8V | 40C | 400A | 39.5x53x121mm | 450g | |
| 4FBC-8068107XF | 4000mAh | 12.8V | 50C | 400A | 34x70x120mm | 525g | |
| 4FBC-8544141TF | 3500mAh | 12.8V | 70C | 350A | 36.5x46x151mm | 425g | |
| 4FBC-5470125PF | 3500mAh | 12.8V | 40C | 350A | 23.5x71.5x137mm | 395g | |
| 4FBC-1104295HF | 3300mAh | 12.8V | 40C | 330A | 48.1x43.5x106mm | 390g | |
| 4FBC-8444105HF | 3000mAh | 12.8V | 40C | 300A | 36x45.5x117mm | 355g | |
| 4FBC-8048105HF | 3000mAh | 12.8V | 40C | 300A | 35x49.5x114mm | 350g | |
| 4FBC-606094HF | 2500mAh | 12.8V | 40C | 250A | 27x62.5x107mm | 315g | |
| 4FBC-804380HF | 2000mAh | 12.8V | 40C | 200A | 37x43.5x87mm | 250g | |
| 4FBC-4544105HF | 1600mAh | 12.8V | 40C | 160A | 20.2x46x119mm | 190g |
Product Feature
-Pouch cell,high discharge C-rate;
- Evironmental friendly and high safety performance which can pass the acupuncture test;
- Support fast charge.Under 100% SOC-DOD, charge at 8C and discharge at 10C, cycle life can reach 1500 times, and the capacity rentation reaches 80%;
- Application: compatible with HEV, PHEV, electric tools and other fields. match demand for fast charge and long cycle life and compatible with power grid, base station and other fields.
Performance display
|
|
Application
Power bank car jump start, MC18 car jump starter, Battery jump starter 12V 24V Cars diesel petrol portabe
Packaging & Shipping
Regular Safety Packing Or As Customer's Requirements.
Shipping By Sea, Air Or UPS, DHL, FedEx Express.
PAYMENT TERMS
EXPRESS OPTIONS
Manufacturing Capability
|
Capacity&Leadtime
|
|
|
● Stacking/per day:50Kpcs
● Winding/per day:5,00Kpcs
|
● Regular Model:≤8 weeks
● Customized:16-18 weeks(The first order, if nonew facility added )
|
|
|
| The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers. |
|
|
| Management Improvement according to international standards |
|
|
|
Safety and environmental Certificates capability&service |
|
| Performance Test Capability |
|
FAQ
| Q1. What are the diferences betwee high C-rate and low C-rate lithium? |
|
polymer (Li-Po) batteries.
|
| Q2. How is a Li-Po battery made? |
|
When a Li-Po battery is made, five main aspects should be considered carefully: (1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks; (2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed; (3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection; (4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.
|
| Q3. What gases are generated in the formation process. Are they dangerous? |
|
The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.
|
| Q4. Why do we need formation process? |
|
Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.
|
| Q5. Why do Li-Po batteries bloat/swell? |
| The Li-Po batteries may bloat or swell due to the following reason: 1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling. 2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling. 3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling. 4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling. |
