Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier

Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier

10000mAh
3S / 3Cell / 11.1V
Chat Now
Service Hotline:
0752-2322511
High Rate Discharge Li-Po Battery

Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect

Industry-leading high temperature & high power discharging capability
Outstanding gravimetric Energy density: max 280Wh/kg
Low IR, low temperature rising, low self-discharging
Longer cycle life:1C ≥1000 cycles , 100% DOD
Good consistency, stable performance
LCO(4.2V/4.35V/4.4V/4.45V),LFP and NCM ,Flexible customized solution
Product Details
Place of Origin:
China
Brand Name:
FULLYMAX
Model Number:
FB10000HP-3S
User-defined Attribute
Capacity:
10000mAh
Voltage:
3S / 3Cell / 11.1V
Discharge Rate:
25C
Max Burst Rate:
50C
Wh:
111
Weight:
677g
Dimensions (mm):
25.2x65x196mm
Wire Gauge:
AWG10#
Wire Length:
100mm
Balancer Connector Type:
JST-XHR
Discharge Plug:
AS150+XT150/XT90 (Choose The Favoriate Plug You Need)
High Light:

fullymax 10000mah

,

drone battery 10000mah

,

10000mah lipo battery

Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 0

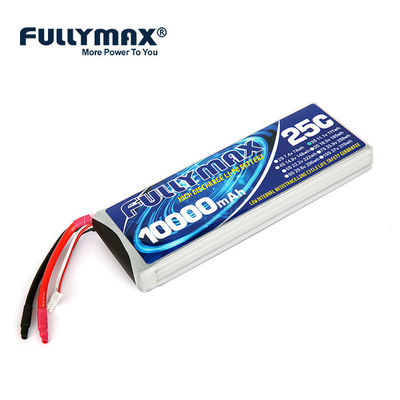

Fullymax 11.1V 10000mAh 3cell 25C High Rate Discharge eVTOL LiPo Battery





Fullymax high capacity batteries provide high quality, reliable power for your RC,eVTOL,Quadcopter,Multirotor,Hexacopter,etc.
All Fullymax UAV LiPos are packed with vibration-proof & fire-proof material and packed with battery carton ensuring you get your battery in good condition.



UAV model:
4 axles 10 liters, 4 axles 16 liters, 6 axles 16 liters, 6 axles 22 liters, 6 axles 25 liters, 6 axles 30 liters;
Battery model: 6000mAh,8000mAh,10000mAh,12000mAh,14000mAh,16000mAh,17500mAh,18000mAh,20000mAh,21000mAh,22000mAh,24000mAh,27000mAh,,28000mAh,,30000mAh,,32000mAh,34000mAh,,36000mAh,,38000mAh,,40000mAh,, 42000mAh, 44000mAh, and many other capacities are available, the voltage can be customized 6S22.2V, 7S25.9V, 12S44.4V, 14S51.8V and other voltages, the discharge rate is 15-25C high current discharge;





For other configurations (without discharge plug) with same cell model, please refer below table.

Battery pack Model Description Max cont. discharge Burst (3Sec) Dimensions H x W x L  Weight Wh
FB10000HP-1S 3.7V 10000mAh 1cell 25C 50C 8.9x67x198.0mm 230g 37
FB10000HP-3S 11.1V 10000mAh 3cell 25C 50C 25.2x65x196mm 677g 111
FB10000HP-4S 14.8V 10000mAh 4cell 25C 50C 36.5x67x198.0mm 912g 148
FB10000HP-6S 22.2V 10000mAh 6cell 25C 50C 52.8x66.5x197.5mm 1354g 222
FB20000HP-6S2P 22.2V 20000mAh 12cell 25C 50C 100x67x204mm 2623g 444





Product Feature


   •  Stable automatic stacking technology enables single-cell capacities 10000mAh.


   ​• Higher capacity than comparable size lipo packs.


   ​• Perfect match for high-performance models.​







Application

Quadcopter/Multi-copter Drones/Fixed Wing UAV drone in fields of agricultural spraying, cargo delivery, military, police, surveying and mapping, engineering & construction,mining,environmental monitoring, aerial photography, electric aircraft (eVTOL),etc.









Manufacturing Capability





Capacity&Leadtime



   ●  Stacking/per day:50Kpcs



   ● Winding/per day:2,00Kpcs









● Regular Model:≤8 weeks



● Customized:16-18 weeks(The first order, if nonew facility added )



Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 1 Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 2





The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers.





Quality Management System
Management Improvement according to international standards
Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 3 Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 4 Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 5 Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 6 Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 7

ISO9001

Quality Management System

ISO14001

Environmental Management System

Occupational Health And

Safety Management System

Hazardous Substance Process

Management System

Aeroepace Quality Systems

AS9100D:2016





Safety and environmental Certificates capability&service

  • Simulation tests of safety certificates proceeded
  • Service of certificates application for customers

       Drone Lipo Battery 11.1 V 10000mah Fullymax 3cell 25C Aircraft Lilium Evtol Battery Supplier 8



Performance Test Capability



  • Electric Performance Test
  • Safety Performance Test
  • Mechanical Performance Test
  • Environmental Performance Test
  • Storing Performance Test








FAQ

Q1. What are the diferences betwee high C-rate and low C-rate lithium?

polymer (Li-Po) batteries.
In general, the diferences lie in the materials made of the positive & negative terminals, the area density design, the electrolyte ingredient, the septum data and the density of inside pieces.



Q2. How is a Li-Po battery made?

When a Li-Po battery is made, five main aspects should be considered carefully:

(1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks;

(2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed;

(3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection;

(4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.



Q3. What gases are generated in the formation process. Are they dangerous?

The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.



Q4. What should be known with regard to handling of battery cells?

1. Aluminum Laminate Film: Easily damaged by sharp edge parts such as Ni-tabs,pins and needles, compared with metal-can-case Li-Po cells.
2. Cells may be damaged by heat above approximately 80℃. Sealing break maycause electrolyte leakage, possibly leading to short circuit and generation of very high
current, especially for our high-power series cells, which causes heating of the cellssequently and may results in electrolyte leakage, smoke emission, ignition and/or
explosion that are very dangerous. The polymer tabs may be easily short-circuited if put on conductive materials. An appropriate circuitry with PCM shall be employed toprotect accidental short of the battery packs.
3. Mechanical Shock: Polymer has less mechanical endurance than metal can case of Lithium-ion cels.Falling, hiting and bending may cause degradation of polymer
characteristics.
4. Handling of Tabs: the Polymer tabs are not so stubborn, especially for aluminum tabs at the positive terminal. DO NOT put much force on the polymer tabs. DO NOT
bend tabs many times. Aluminum tabs may be torn off easily by shear force.



Q5. Why do Li-Po batteries bloat/swell?

The Li-Po batteries may bloat or swell due to the following reason:
1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling.
2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling.
3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling.
4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling.



Q6.Could I fast charge the Li-Po batteries? If yes, under what conditions?
Please follow the suppliers'suggestions and DO NOT fast charge the Li-Po batteries.If you need to do this under urgent conditions, please make sure to use a qualified
balance charger. Frequent fast charging will shorten the batteries'lifetime.
