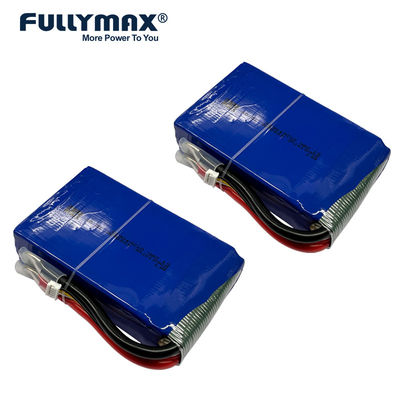

FULLYMAX 4FBC-9570112HF 6000mAh 12.8V 45C 600A LiFePO4 lithium battery quick start battery jumper battery jump pack
Lithium Iron Phosphate material has the advantages of being environmentally friendly and non-toxic, having a high working voltage and high performance.
Furthermore, high C-rate LiFePO4 batteries have become more popular as higher discharge and faster charging requirements have pushed for more technological improvements.
|
Related Feature
For other configurations (without discharge plug) with same cell model, please refer below table.
| Model No. | Capacity | Voltage | C-Rate | Burst C-rate | Dimensions | Weight | Application |
| 4FBC-9584165HF | 10000mAh | 12.8V | 40C | 1000A | 40x88.5x185mm | 1080g | Start-Stop & Jump starter |
| 4FBC-9087125HF | 8000mAh | 12.8V | 40C | 480A | 40x88.5x136mm | 890g | |
| 4FBC-1084165PF | 7500mAh | 12.8V | 40C | 750A | 31.5x88.5x185mm | 890g | |
| 4FBC-10557130HF | 6100mAh | 12.8V | 40C | 366A | 45x58.5x141mm | 685g | |
| 4FBC-9570112HF | 6000mAh | 12.8V | 40C | 600A | 40.5x71x126mm | 650g | |
| 4FBC-9768107XF | 5000mAh | 12.8V | 45C | 500A | 40x70x120mm | 600g | |
| 4FBC-7470125PF | 5000mAh | 12.8V | 40C | 500A | 32x71.5x140mm | 580g | |
| 4FBC-6075130HF | 4500mAh | 12.8V | 40C | 450A | 26.8x77x143mm | 540g | |
| 4FBC-6070140HF | 4200mAh | 12.8V | 40C | 420A | 26x72.5x152mm | 485g | |
| 4FBC-9452106HF | 4000mAh | 12.8V | 40C | 400A | 39.5x53x121mm | 450g | |
| 4FBC-8068107XF | 4000mAh | 12.8V | 50C | 400A | 34x70x120mm | 525g | |
| 4FBC-8544141TF | 3500mAh | 12.8V | 70C | 350A | 36.5x46x151mm | 425g | |
| 4FBC-5470125PF | 3500mAh | 12.8V | 40C | 350A | 23.5x71.5x137mm | 395g | |
| 4FBC-1104295HF | 3300mAh | 12.8V | 40C | 330A | 48.1x43.5x106mm | 390g | |
| 4FBC-8444105HF | 3000mAh | 12.8V | 40C | 300A | 36x45.5x117mm | 355g | |
| 4FBC-8048105HF | 3000mAh | 12.8V | 40C | 300A | 35x49.5x114mm | 350g | |
| 4FBC-606094HF | 2500mAh | 12.8V | 40C | 250A | 27x62.5x107mm | 315g | |
| 4FBC-804380HF | 2000mAh | 12.8V | 40C | 200A | 37x43.5x87mm | 250g | |
| 4FBC-4544105HF | 1600mAh | 12.8V | 40C | 160A | 20.2x46x119mm | 190g |
Product Feature
- Low Temperature Performace: Support large rate discharge at - 20 ° C~- 30 ° C ;
- High temperature resistant storage: storage at 80℃~85℃ for 48h, thickness swelling rate less than 10%, recovery rate more than 85%;
- High Discharge C-rate: Support 150C~250C pulse discharge for 1 second and 120C~200C pulse discharge for 2s;
- Support fast charge: constant current charge up to 97% during charging process
- High safety performance: can pass the acupuncture test.
- Application: match demand for fast charge and long cycle life and compatible with power grid, base station and other fields
Performance display
|
|
Application
match demand for fast charge and long cycle life and compatible with power grid, base station and other fields
Widely used in automobile jump starter, motorcycle jump starter, medical devices, etc;
Packaging & Shipping
Regular Safety Packing Or As Customer's Requirements.
Shipping By Sea, Air Or UPS, DHL, FedEx Express.
PAYMENT TERMS
EXPRESS OPTIONS
Manufacturing Capability
|
Capacity&Leadtime
|
|
|
● Stacking/per day:50Kpcs
● Winding/per day:5,00Kpcs
|
● Regular Model:≤8 weeks
● Customized:16-18 weeks(The first order, if nonew facility added )
|
|
|
| The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers. |
|
|
| Management Improvement according to international standards |
|
|
|
Safety and environmental Certificates capability&service |
|
| Performance Test Capability |
|
FAQ
| Q1. What are the diferences betwee high C-rate and low C-rate lithium? |
|
polymer (Li-Po) batteries.
|
| Q2. How is a Li-Po battery made? |
|
When a Li-Po battery is made, five main aspects should be considered carefully: (1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks; (2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed; (3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection; (4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.
|
| Q3. What gases are generated in the formation process. Are they dangerous? |
|
The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.
|
| Q4. Why do we need formation process? |
|
Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.
|
| Q5. Why do Li-Po batteries bloat/swell? |
| The Li-Po batteries may bloat or swell due to the following reason: 1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling. 2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling. 3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling. 4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling. |
