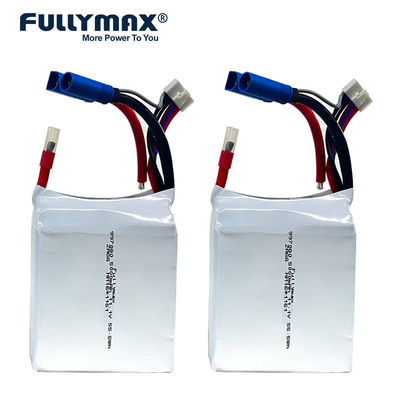

40C 5000mah Lipo Battery 11.1V Emergency Car Starter Battery Jump Starter Rechargeable Pack Medical Electronics

FULLYMAX3FBC-997080PN 5000mAh rechargeable car jump starter medical electronics portable car battery jumper

Patent Pools And Related Technology Sharing With International Laboratories,

High Pulse Discharge Current @300C,

Excellent Low-Temperature Discharge Performance,

Excellent High-Temperature Storage Performance,

Fullymax's NCM battery takes new technology with high energy desity, low cost and excellent pulse purformance. Compared with the traditional LCO battery, the weight energy density of NCM Agricultural Spraying UAV battery increased 20%, and the cost reduced by 10~15%.
It is a trend for NCM to replace LCO. Under 100% SOC-DOD, charge at 5C and discharge at 7C, and the cycle can reach 1900 times.

With High power performance, the median voltage of 10C~15C discharge is about 3.4V.

Capacity&Leadtime

● Stacking/per day:50Kpcs

● Winding/per day:5,00Kpcs

● Regular Model:≤8 weeks

● Customized:16-18 weeks(The first order, if nonew facility added )

     Quality Management Syste

• Quality management systems Requirements for Aviation
• ISO9001 Quality Management System
• ISO14001 Environmental Management System

• Hazardous Substance Process Management System
• Occupational Health And Safety Management System

Safety and environmental Certificates

capability&service

• Simulation tests of safety certificates proceeded
• Service of certificates application for customers

• Electric Performance Test
• Safety Performance Test
• Mechanical Performance Test
• Environmental Performance Test
• Storing Performance Test

polymer (Li-Po) batteries.
In general, the diferences lie in the materials made of the positive & negative terminals, the area density design, the electrolyte ingredient, the septum data and the density of inside pieces.

When a Li-Po battery is made, five main aspects should be considered carefully:

(1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks;

(2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed;

(3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection;

(4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.

The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.

Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.
