Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect

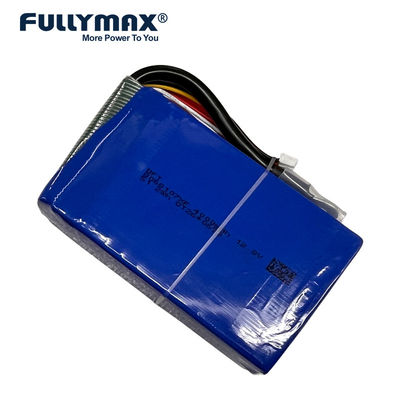

FULLYMAX 4FBC-9452106HF 4000mAh 12.8V 40C 400A lithium iron phosphate batteries power bank High-performance protection board Lithium Iron Phosphate material has the advantages of being environmentally friendly and non-toxic, having a high working voltage and high performance.It is considered to be the anode material for the new generation of Lithium batteries.
Furthermore, high C-rate LiFePO4 batteries have become more popular as higher discharge and faster charging requirements have pushed for more technological improvements. High-discharge Lithium Iron Phosphate batteries are widely used for military equipment, aerospace industry, deep diving equipment, polar region scientific investigation, medical electronics, and other low temperature application fields.
|
Related Feature
For other configurations (without discharge plug) with same cell model, please refer below table.
Model No. | Capacity | Voltage | C-Rate | Burst C-rate | Dimensions | Weight | Application |
4FBC-9584165HF | 10000mAh | 12.8V | 40C | 1000A | 40x88.5x185mm | 1080g | Start-Stop & Jump starter |
4FBC-9087125HF | 8000mAh | 12.8V | 40C | 480A | 40x88.5x136mm | 890g | |
4FBC-1084165PF | 7500mAh | 12.8V | 40C | 750A | 31.5x88.5x185mm | 890g | |
4FBC-10557130HF | 6100mAh | 12.8V | 40C | 366A | 45x58.5x141mm | 685g | |
4FBC-9570112HF | 6000mAh | 12.8V | 40C | 600A | 40.5x71x126mm | 650g | |
4FBC-9768107XF | 5000mAh | 12.8V | 45C | 500A | 40x70x120mm | 600g | |
4FBC-7470125PF | 5000mAh | 12.8V | 40C | 500A | 32x71.5x140mm | 580g | |
4FBC-6075130HF | 4500mAh | 12.8V | 40C | 450A | 26.8x77x143mm | 540g | |
4FBC-6070140HF | 4200mAh | 12.8V | 40C | 420A | 26x72.5x152mm | 485g | |
4FBC-9452106HF | 4000mAh | 12.8V | 40C | 400A | 39.5x53x121mm | 450g | |
4FBC-8068107XF | 4000mAh | 12.8V | 50C | 400A | 34x70x120mm | 525g | |
4FBC-8544141TF | 3500mAh | 12.8V | 70C | 350A | 36.5x46x151mm | 425g | |
4FBC-5470125PF | 3500mAh | 12.8V | 40C | 350A | 23.5x71.5x137mm | 395g | |
4FBC-1104295HF | 3300mAh | 12.8V | 40C | 330A | 48.1x43.5x106mm | 390g | |
4FBC-8444105HF | 3000mAh | 12.8V | 40C | 300A | 36x45.5x117mm | 355g | |
4FBC-8048105HF | 3000mAh | 12.8V | 40C | 300A | 35x49.5x114mm | 350g | |
4FBC-606094HF | 2500mAh | 12.8V | 40C | 250A | 27x62.5x107mm | 315g | |
4FBC-804380HF | 2000mAh | 12.8V | 40C | 200A | 37x43.5x87mm | 250g | |
4FBC-4544105HF | 1600mAh | 12.8V | 40C | 160A | 20.2x46x119mm | 190g |
Product Feature
- The World's Leading Technology With Exclusive Patents, Shared The Core Technology of Battery With World-Famous Car Brands;
- Excellent Discharge Performance For High Discharge Rate of 100C;
- High Discharge Rate of 28C at Low Temperature (-20°C);
- Excellent High-Temperature Storage Performance.
- Application: match demand for fast charge and long cycle life and compatible with power grid, base station and other fields
Performance display
Application
Widely used in automobile jump starter, motorcycle jump starter, medical devices, etc;
Packaging & Shipping
Regular Safety Packing Or As Customer's Requirements.
Shipping By Sea, Air Or UPS, DHL, FedEx Express.
PAYMENT TERMS
EXPRESS OPTIONS
Manufacturing Capability
Capacity&Leadtime
|
|
● Stacking/per day:50Kpcs
● Winding/per day:5,00Kpcs
|
● Regular Model:≤8 weeks
● Customized:16-18 weeks(The first order, if nonew facility added )
|
The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers. |
Quality Management Syste |
Management Improvement according to international standards |
Safety and environmental Certificates capability&service |
|
Performance Test Capability |
|
FAQ
Q1. What are the diferences betwee high C-rate and low C-rate lithium? |
polymer (Li-Po) batteries.
|
Q2. How is a Li-Po battery made? |
When a Li-Po battery is made, five main aspects should be considered carefully: (1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks; (2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed; (3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection; (4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.
|
Q3. What gases are generated in the formation process. Are they dangerous? |
The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.
|
Q4. Why do we need formation process? |
Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.
|
Q5. Why do Li-Po batteries bloat/swell? |
The Li-Po batteries may bloat or swell due to the following reason: 1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling. 2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling. 3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling. 4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling. |
