Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect
|

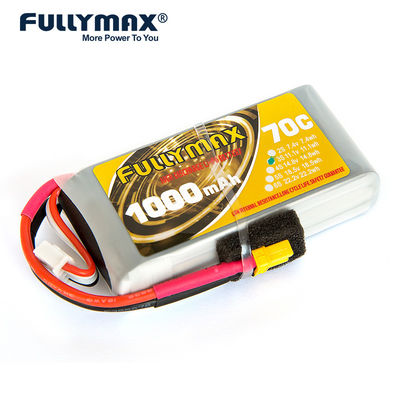

FULLYMAX 1000MAH 11.1V 3S 70C FPV LIPO BATTERY Drone Helicopter RC Racing Race Toy Parts rc model battery
The 1000mAh 11.1V 3S 70C LiPo battery is part of Fullymax's FPV Racing range. This collection is flawlessly designed to cater for the use in first-person-view (FPV) racing drones. The immense power that these solid little batteries are capable of delivering is insane. With constant discharge rates soaring at 70C, it is no wonder that these batteries have made headlines in the racing circuit. The ever expanding FPV range is sure to set you apart from the rest. Keeping weight and size to the utter minimum, Fullymax's FPV range is guaranteed to not only surprise you, but to consistently impress.
- Specially Customized According to Competition Rules |
Related Feature
For other configurations (without discharge plug) with same cell model, please refer below table.
Battery pack | Model Description | Max cont. discharge | Burst (3Sec) | Dimensions | Weight | Wh |
FB1000XT-1S | 3.7V 1000mAh 1cell | 70C | 120C | 7.1x35x68mm | 41g | 3.70 |
FB1000XT-2S | 7.4V 1000mAh 2cell | 70C | 120C | 13.4x35x68mm | 67g | 7.40 |
FB1000XT-3S | 11.1V 1000mAh 3cell | 70C | 120C | 19.5x35x68mm | 96g | 11.10 |
FB1000XT-4S | 14.8V 1000mAh 4cell | 70C | 120C | 25.9x35x68mm | 122g | 14.80 |
FB1000XT-6S | 22.2V 1000mAh 6cell | 70C | 120C | 38.6x36.5x71.5mm | 196g | 22.20 |
Product Feature
- Flat discharge curve.
- Stable quality and excellent consistency.
- Low-resistance, high-reliability and light-weight properties.
- Longer cycle life compared with most batteries in the market.
- Application:Compatible with Multirotor FPV 150 to 200mm size.
Application
Compatible with Multirotor FPV 150 to 200mm size(Only if the voltage, dimension and the plug match, then it will fit).
Packaging & Shipping
Regular Safety Packing Or As Customer's Requirements.
Shipping By Sea, Air Or UPS, DHL, FedEx Express.
PAYMENT TERMS
EXPRESS OPTIONS
Packaging & Shipping
Regular Safety Packing Or As Customer's Requirements.
Shipping By Sea, Air Or UPS, DHL, FedEx Express.
PAYMENT TERMS
EXPRESS OPTIONS
Manufacturing Capability
Capacity&Leadtime
|
|
● Stacking/per day:50Kpcs
● Winding/per day:5,00Kpcs
|
● Regular Model:≤8 weeks
● Customized:16-18 weeks(The first order, if nonew facility added )
|
The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers. |
Quality Management Syste |
Management Improvement according to international standards |
|
|
Safety and environmental Certificates capability&service |
|
Performance Test Capability |
|
FAQ
Q1.What should be known about assembling battery packs? |
1. Shocks, high temperature or contacts of sharp-edge components should not be allowed in battery pack assembling process. |
Q2. Do the Li-Po batteries need to be pre-cycled before I use it? |
It is not necessary to do this because the manufactures have already done the formation processing for the cells. Their performance would be degraded if more cycling were performed.
|
Q3. How is a Li-Po battery made? |
When a Li-Po battery is made, five main aspects should be considered carefully: (1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks; (2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed; (3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection; (4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.
|
Q4. How to Charge li-Po battery? |
1. Charging Current: Charging current should be less than the maximum charging current listed in specifications. Charging with higher current than recommended may cause serious damage to cell performance and safety features,leading to heat generation or leakage. 2. Charging Voltage: Charging should be performed at a voltage less thanthat listed in specifications (4.20V/cell). Charging at above 4.25V-the absolute maximum voltage, must be strictly prohibited.The chargers used should have this voltage limitation function. Charging with higher voltage than specified is very dangerous, which may cause serious damage to the cell performance and safety features, leading 3. Charging Temperature: The cells should be charged within a range of temperatures listed in the specifications. Always let the batteries cool down to ambient temperature before charging. 4. Prohibition of Reverse Charging: Do not reverse the positive(+) and negative(-) terminals. Otherwise, the batery pack wil be reverse-charged and abnormal chemical reactions may ocur. Ecesively high current may flow during recharging, possibly leading to damage, overheating, smoke emission, bursting and/or ignition.
|
Q5. Why do Li-Po batteries bloat/swell? |
The Li-Po batteries may bloat or swell due to the following reason: 1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling. 2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling. 3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling. 4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling. |
Q6.What discharging conditions do you recommend? |
1. We Recommended a cut-off voltage as 3.0 V for standard series batteries. |
