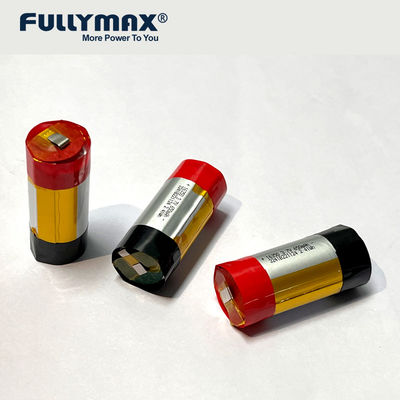

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion

FBC16350
650mAh
Chat Now
Service Hotline:
0752-2322511
High Rate Discharge Li-Po Battery

Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect

Industry-leading high temperature & high power discharging capability
Outstanding gravimetric Energy density: max 280Wh/kg
Low IR, low temperature rising, low self-discharging
Longer cycle life:1C ≥1000 cycles , 100% DOD
Good consistency, stable performance
LCO(4.2V/4.35V/4.4V/4.45V),LFP and NCM ,Flexible customized solution
Product Details
Place of Origin:
China
Brand Name:
FULLYMAX
Model Number:
FBC16350
User-defined Attribute
Model No.:
FBC16350
Capacity:
650mAh
Voltage:
3.7V
C-rate:
3A
Dimensions(H X W X L ):
Φ16*35mm
Weight:
13g
Remark:
Cylindrical Cell
Application:
Consumer Electronics
 Business Type:
Manufacturer
High Light:

16350 battery FULLYMAX 650mah

,

e cig lithium ion FULLYMAX battery

,

e cig battery for vape

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 0

FULLYMAX 16350 650mAh 3.7V 3A High Power E-Cig Li-Po Battery



Storage with fully charged status at room temperature (23±2℃)for three months, the OCV is higher than 4.155V, the self discharge is at leading level among the industry.


Disposable / Twice E-cig battery C rate performance can match market demand.



Variable wattage batteries and mods
Variable wattage (or voltage) batteries are the next step up from a manual battery. These allow you to increase or decrease the wattage provided by the battery, usually by pressing up/down controls.
There are several common types of variable wattage battery on the market today.
Options like the Vision Spinner could be considered variable voltage vape pens because they have a tube shape in the same way as simpler manual batteries.
Mod devices are usually variable wattage, but may also have other functions. For example, bypass control simply delivers the full power of the battery to the coil, while temperature control measures the resistance of your coil . These devices feature bigger batteries with a larger capacity and often have a wider wattage range.





16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 1     Related Feature

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 2

For other configurations (without discharge plug) with same cell model, please refer below table.



Model No. Capacity Voltage C-Rate Size Weight Remark
FBC13400 550mAh 3.7V 3A Φ13*40.5mm 11.2g Cylindrical Cell
FBC16350 650mAh 3.7V 3A Φ16*35mm 13g
FBC16450 900mAh 3.7V 10A Φ46*45mm 17.5g
FBC17350 850mAh 3.7V 3A Φ17*35mm 15g
FBC18250 600mAh 3.7V 3A Φ18*25mm 11.5g
FBC18350 1 000mAh 3.7V 3A Φ18*35mm 16.8g
FBC18400 11 00mAh 3.7V 3A Φ18*40mm 21g
FBC23610 2800mAh 3.7V 25A Φ23*61mm 52g
FBC801844 520mAh 3.7V 5A 7.8*18.0*41.0mm 10.5g Pouch Cell
FBC961941 690mAh 3.7V 5.5A 9.6*19.0*41mm 13.5g
FBC1061941 7 50mAh 3.7V 6.4A 10.6*19*41mm 14.2g









16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 3     Product Feature 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 2

-  Fast Charge, 4min up to 90%



-  High Efficiency, Effective Voltage>90% (3A, 3.3V)



-  Long Cycle Life, Discharge Capacity≥90% After 300 Cycles



-  Excellent Discharge Performance at Low Temperature (-20℃)









16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 3      Performance display

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 2

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 7 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 8
Disposable / Twice E-cig battery C rate performance can match market demand. Storage with fully charged status at room temperature (23±2℃)for three months, the OCV is higher than 4.155V, the self discharge is at leading level among the industry.









16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 3    Manufacturing Capability

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 2

Capacity&Leadtime





● Stacking/per day:50Kpcs



● Winding/per day:2,00Kpcs



● Regular Model:≤8 weeks



● Customized:16-18 weeks(The first order, if nonew facility added )



16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 11 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 12



The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers.





16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 3     Quality Management Syste

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 2

Management Improvement according to international standards
16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 15 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 16 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 17 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 18 16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 19

ISO9001

Quality Management System

ISO14001

Environmental Management System

Occupational Health And

Safety Management System

Hazardous Substance Process

Management System

Aeroepace Quality Systems

AS9100D:2016







Safety and environmental Certificates

capability&service

  • Simulation tests of safety certificates proceeded
  • Service of certificates application for customers

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 20



Performance Test Capability



  • Electric Performance Test
  • Safety Performance Test
  • Mechanical Performance Test
  • Environmental Performance Test
  • Storing Performance Test







16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 3     FAQ

16350 650mah Lipo Battery 3.7V 3A Adjustable E-Cig Battery For Vape Lithium Ion 2

Q1. What are the diferences betwee high C-rate and low C-rate lithium?

polymer (Li-Po) batteries.
In general, the diferences lie in the materials made of the positive & negative terminals, the area density design, the electrolyte ingredient, the septum data and the density of inside pieces.





Q2. How is a Li-Po battery made?

When a Li-Po battery is made, five main aspects should be considered carefully:

(1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks;

(2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed;

(3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection;

(4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.





Q3. What gases are generated in the formation process. Are they dangerous?

The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.





Q4. Why do we need formation process?

Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.





Q5. Why do Li-Po batteries bloat/swell?
The Li-Po batteries may bloat or swell due to the following reason:
1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling.
2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling.
3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling.
4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling.
