Home Application Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc

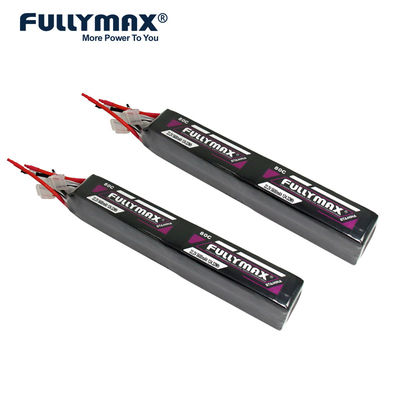

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc

FB5600XT-6S
44.4V 5600mAh 12cell
Chat Now
Service Hotline:
0752-2322511
High Rate Discharge Li-Po Battery

Fullymax focuses on the high rate discharge pouch batteries, including power batteries for electric aviation aircraft (eVTOL), electric power , drones, electronic cigarettes, fast charging batteries,12V/48V Start/Stop batteries and jump starter for car, RC professional remote control models and toy , military and special equipment, etc. FULLYMAX batteries are also widely used in smart home like sweeping robots, vacuum cleaners, small power tools, etc.; 3C consumer electronics like remote control handles, beauty equipment, portable projectors, etc., smart Bluetooth products, medical equipment ,ect

Industry-leading high temperature & high power discharging capability
Outstanding gravimetric Energy density: max 280Wh/kg
Low IR, low temperature rising, low self-discharging
Longer cycle life:1C ≥1000 cycles , 100% DOD
Good consistency, stable performance
LCO(4.2V/4.35V/4.4V/4.45V),LFP and NCM ,Flexible customized solution
Product Details
Place of Origin:
China
Brand Name:
FULLYMAX
Model Number:
FB5600XT-12S
User-defined Attribute
Model No.:
FB5600XT-6S
Model Description:
44.4V 5600mAh 12cell
Burst (10Sec):
80C
Conti. C-rate:
140C
Dimensions(H X W X L ):
55.4x53x318 Mm
Weight:
1630 G
Wh:
248.64 Wh
Wire Gauge:
AWG8#
Wire Length:
100mm
Balancer Connector Type:
JST-XHR
Capacity Tolerance:
Normial Capacity±3%
Weight Tolerance:
Normial Weight±1.5%
High Light:

lipo battery airplane

,

lipo batteries rc airplanes

,

FULLYMAX rc aircraft batteries

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 0

FULLYMAX STAMINA 5600mAh 80C 44.4V 12S LiPo Battery Helicopter Battery Airplane Battery



Fullymax Stamina Lipo Battery - Power Redefined.


The battery can supply high current for long periods of time while maintaining the rated voltage, providing you with 90-100% of the available capacity and safely depleting the lower charge.


Fullymax Stamina Batteries have redefined the RC lipo battery industry, with a visonto become a global leading new energy enterprise with high rate discharge battery as the core. Dedicated within the RC helicopter industry, along with a rapid advancement in the airplane & multi rotor segment, Fullymax has quickly become the choice of pro level pilots and beyond, filling the flight line with pilots of all skill levels & demands.


Outfitted to perform, Fullymax Stamina series is the battery pilots search for, and when compared with other battery manufactures in the marketplace, Fullymax continues to provide levels of quality, performance and power that outstrip all others.


For the ultimate choice in battery technology for helicopter, multi rotors, airplane applications and more, Fullymax Stamina lithium polymer batteries live up to their name, seen by many within the industry as the very best in lithium polymer power.







Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 1     Related Product

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

For other configurations (without discharge plug) with same cell model, please refer below table.



Battery pack Model Description Max cont. discharge Burst (3Sec) Dimensions H x W x L  Weight Wh
FB5600XT-1S 3.7V 5600mAh 1cell 80C 140C 9.0x45x148mm 121g 20.72
FB5600XT-6S 22.2V 5600mAh 6cell 80C 140C 54.8x48x160mm 810g 124.32
FB5600XT-7S 25.9V 5600mAh 7cell 80C 140C 64.2x48x161mm 887g 145.04
FB5600XT-12S 44.4V 5600mAh 12cell 80C 140C 55.4x53x318mm 1,630g 248.64






Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 3     Product Feature

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

- Ultimate Performance RC Lipo Battery


- Long life safety Guranteed


- Light Weight


- Applications: RC Lipo Battery, Helicopter Battery, Airplane Battery



- Long cycle life, work longer and durable.


- Safe use. Lithium iron phosphate has been strictly tested.


- Good high temperature charging performance.





Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 3      Application

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

For 700-size to 800-size helicopter.RC Lipo Battery, Helicopter Battery, Airplane Battery









Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 3      Packaging & Shipping

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

Regular Safety Packing Or As Customer's Requirements.

Shipping By Sea, Air Or UPS, DHL, FedEx Express.



PAYMENT TERMS

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 9



EXPRESS OPTIONS

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 10







Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 3    Manufacturing Capability

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

Capacity&Leadtime





● Stacking/per day:50Kpcs



● Winding/per day:5,00Kpcs



● Regular Model:≤8 weeks



● Customized:16-18 weeks(The first order, if nonew facility added )



Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 13 Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 14



The new plant will be located in the Dongjiang Bay Industrial Park, which will be a national high-end industrial park special for new energy, new information technology and intelligent equipment fields based on the “3+7” industrial park planning and deployment proposed by Huizhou relying on the Greater Bay Area, aiming to integrate Huizhou’s “1+4” industrial parks. The area of the new plant is estimated to be 30,000 square meters. With new high-end equipment and workshop environment, the goal is to build a high-end production line dedicated to high-end customers.









Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 3     Quality Management System

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

Management Improvement according to international standards



Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 17 Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 18
  • Quality management systems Requirements for Aviation
  • ISO9001 Quality Management System
  • ISO14001 Environmental Management System
  • Hazardous Substance Process Management System
  • Occupational Health And Safety Management System



Safety and environmental Certificates

capability&service

  • Simulation tests of safety certificates proceeded
  • Service of certificates application for customers

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 19



Performance Test Capability



  • Electric Performance Test
  • Safety Performance Test
  • Mechanical Performance Test
  • Environmental Performance Test
  • Storing Performance Test









Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 3     FAQ

Stamina 5600mah 80c 44.4v 12s Lipo Batteries For Model Aircraft Rc 2

Q1. What are the diferences betwee high C-rate and low C-rate lithium?

polymer (Li-Po) batteries.
In general, the diferences lie in the materials made of the positive & negative terminals, the area density design, the electrolyte ingredient, the septum data and the density of inside pieces.





Q2. How is a Li-Po battery made?

When a Li-Po battery is made, five main aspects should be considered carefully:

(1). Battery Pack should have suficient strength, so that the polymer battery inside could be efectively protected from mechanical shocks;

(2). The polymer cell should be fixedto the battery pack onits large surface area - no cell movement in the battery packshould be allowed;

(3). No sharp edge components should be inside the packcontaining the polymer battery, and meanwhile, suficient insulation layer between wiring and the cell should be used to maintain multiple safety protection;

(4). Ultrasonic welding is recommended for polymer tab connection to obtain low-resistance, high-reliability and light-weight properties;(5). Polymer packs shouldbe designed carefully so that no shear force is applied, and also, no heat is generated even when leakage ocurs for mishaps. PCM from electrolyte leakage should be isolated as perfectly as posible, and narrow distance between bare circuit patterns should be avoided.





Q3. What gases are generated in the formation process. Are they dangerous?

The generated gases include Co, CO2,H2, CH4 and so on. They are not dangerous because of low volume.





Q4. Why do we need formation process?

Organic solvents easily decompose on the negative electrodes during charging, leading to battery swelling, drop of cell capacity, and unsafety caused by activereaction. The purpose of the formation process is to form a solid layer called the solid electrolyte interphase (SEl), which is electrically insulating yet provides significant ionic conductivity. This interphase prevents further decomposition of the electrolyte after the second charging.





Q5. Why do Li-Po batteries bloat/swell?
The Li-Po batteries may bloat or swell due to the following reason:
1. Overcharging:Normally, the maximum charge voltage is 4.2V for RC batteries. If the batteries were overcharged beyond 4.4V, electrolytic oxidation process would happen, which generates mass gas leading to battery swelling.
2. Overheat:When discharging in high temperature or high C rate, the temperature of the inner part of the battery can be even higher, which gasify the electrolyte and results in swelling.
3. Shot-circuit.:If short circuit happened, the cell voltage would drop very fast and the electrolyte would be reactive to generate gases, leading to battery swelling.
4, Sealing:If sealed without proper processing, the battery cell would have water and air in, so that the electrolyte would be reactive to generate gases, leading to battery swelling.
